SPECIAL HEAT SOURCES – EVERYTHING YOU NEED TO KNOW

Did you know that a heat pump can also harness heat sources we don’t usually associate with heating? Heat from wastewater, industrial processes, tunnels or even deep underground is often an untapped energy resource — but with advanced heat pump technology, these can be transformed into a sustainable and cost-effective heating source.

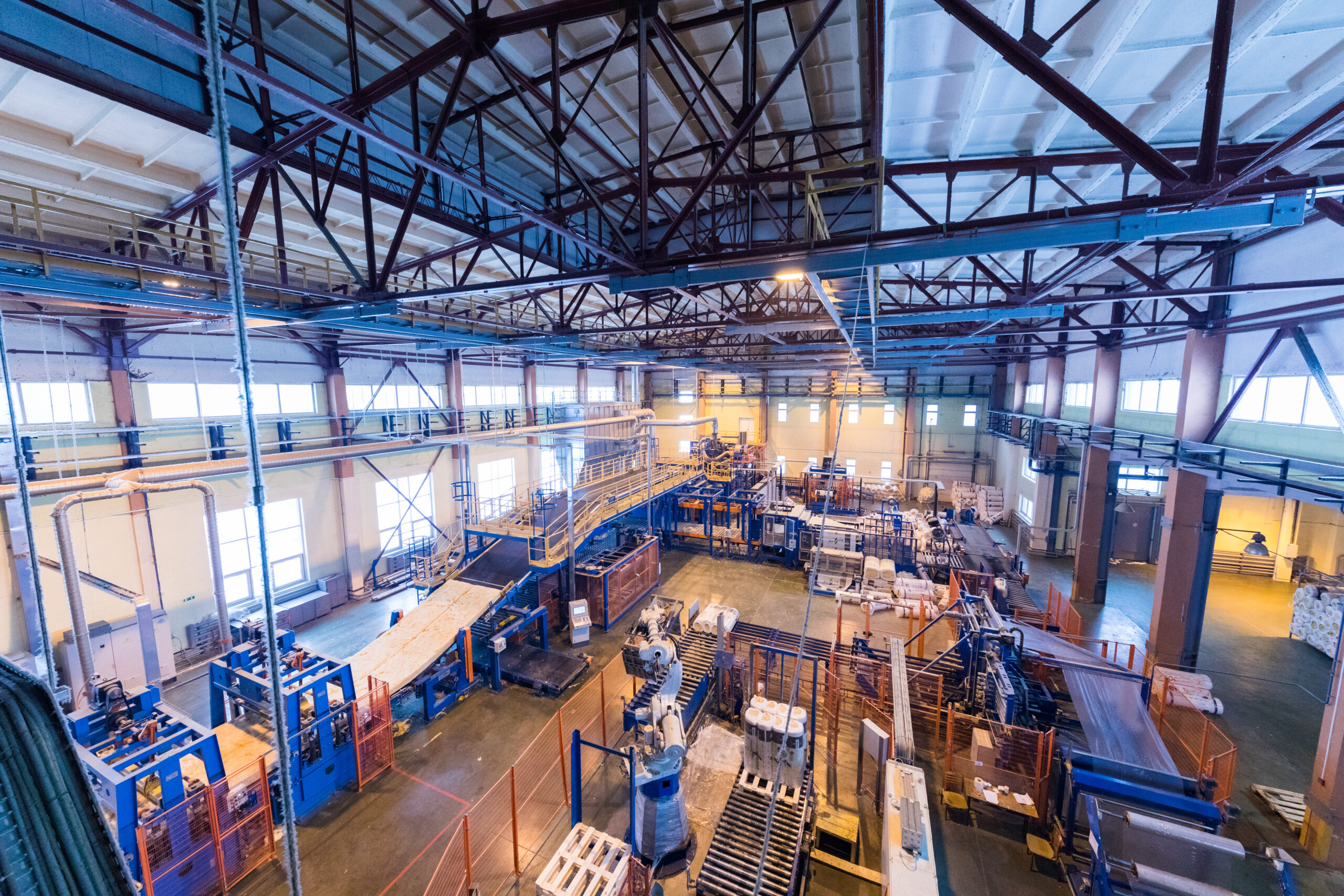

Fiberglass production industry equipment at manufacture background

A heat pump can also operate using less conventional heat sourcessuch as waste heat, heat from septic systems, wastewater, tunnels or even deep geothermal water. These special sources represent an often overlooked potential for heating spaces, domestic hot water and even for cooling.

How do special heat sources work?

Special heat sources are based on capturing heat that would otherwise be lostfor example, in wastewater, industrial processes or deep layers of the earth. A heat pump equipped with the appropriate heat exchanger extracts energy from these sources and converts it into usable heat for space heating or domestic hot water production. The efficiency of such a system mainly depends on the consistency, temperature and quantity of the available heat source.

Types of special heat sources

  • Waste heat from industry and buildings – Waste heat is generated in many processes — from plastic production and laser cooling to laundries and treatment plants. It can be captured via water or air and used as a heat source. Ventilation heat or wastewater from large buildings is also often used. Thanks to the constant availability of heat, this is a very efficient source for heat pumps, particularly in industrial facilities.
  • Heat from septic systems and wastewater – With a suitable pipe system integrated into tanks or sewer pipes, heat can be extracted from sewage. Such systems are especially suitable for farms, tourist facilities and urban areas where there is a sufficient volume of wastewater for continuous operation.
  • Tunnels as a heat source – The temperature in underground tunnels remains stable throughout the year, enabling reliable system operation. A pipe system, similar to a ground collector, is installed along the tunnel walls. Although this is a more complex installation, tunnels are ideal for large buildings in urban environments. KRONOTERM is involved in a project using heat from the Turin metro, where heating is provided with energy from the underground railway.
  • Deep geothermal wells – Geothermal wells at depths of 500 m and more provide access to water with temperatures ranging from 30 °C to 60 °C or higher. The water can be used directly for low-temperature heating systems, while a heat pump can further boost the temperature for high-temperature systems or pools. This solution is particularly suitable for thermal spas, district heating systems or heating industrial greenhouses.
laguna-za-rastlinjakom-kronoterm-lust-paradajz-doo

Why are special heat sources so efficient?

By utilizing heat that would otherwise go to waste, you achieve high energy efficiency and significant cost savings. These are also sustainable sources that help reduce the carbon footprint and are often already available near the building. Thanks to the stable temperature and constant heat flow, the SCOP of the system can reach values comparable to or higher than conventional sources.

Is a special heat source suitable for your building?

A heat pump using a special heat source is an excellent choice for:

  • Industrial facilities with surplus process heat
  • Buildings with wastewater or septic systems
  • Urban buildings near tunnels or underground infrastructure
  • Tourist centres, farms, laundries or treatment plants
  • Buildings with access to deep geothermal water

If you have the opportunity to capture heat from one of these sources, you can significantly reduce heating costs over the long term and improve your building’s energy efficiency. Contact us to find out if this solution is right for your home or building.

Frequently Asked Questions

– 01
What is a special heat source?

A special heat source refers to a non-typical heat source, such as industrial waste heat, heat from septic systems, wastewater, tunnels or geothermal wells deeper than 500 m, which can be used for heating with a heat pump.

– 02
Is the system suitable for a residential house?
+

In rare casessuch as using heat from ventilation recovery or a septic tank — the system can be suitable for houses. However, it is mainly used in larger buildings.

– 03
How can I check if I have a suitable heat source?
+

An energy analysis of the heat source is required for each case, covering the quantity and temperature of the available heat. We recommend consulting a specialist.
