Designed for
comfort that lasts.

HEAT PUMP ETERA

Geothermal heat pump ETERA is a modular, highly efficient, minimalist and environmentally friendly heat pump with an extremely long life span.

– 01

LONG LIFESPAN

ETERA is synonymous with longevity and carefree living – it can have a lifespan of up to 30 years. Longevity is also an ecological advantage, as it helps to reduce the frequency of replacing the entire installation and, consequently, the use of scarce materials.

– 02

EASY INSTALLATION AND MODULARITY

The heat pump is characterised by its modular system design and standardised connections, which makes the installation and maintenance of the heat pump easier and faster, while at the same time making it easy to upgrade and modernise the components.

– 03

QUIET AND COMPACT

The almost inaudible indoor unit of the ETERA system is designed to take up minimal floor space. All its elements are placed in a compact indoor unit that occupies 0.5 m². Its extremely quiet operation will make you easily forget that it is in the same room as you.

– 04

ECONOMICAL AND VERSATILE

It can save up to 80% on heating costs. In addition to heating, it cools your home comfortably in summer and ensures that you always have enough hot water.

3 heat sources

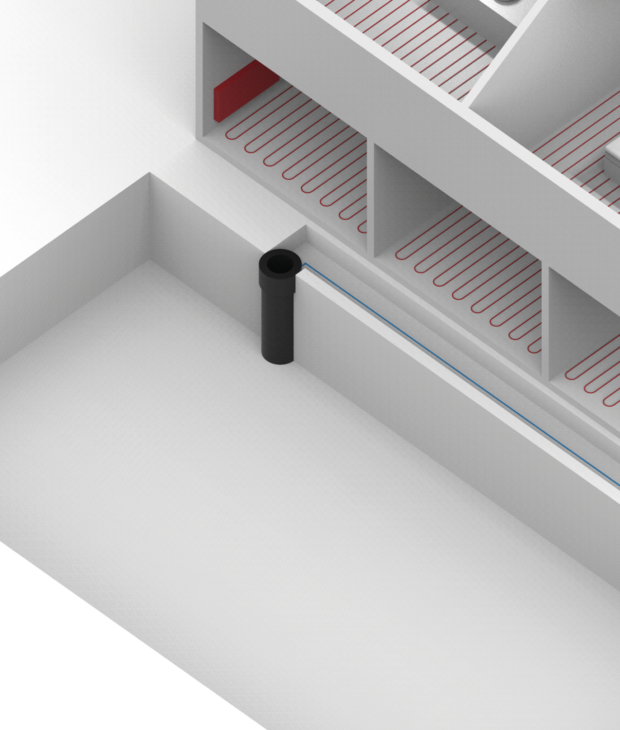

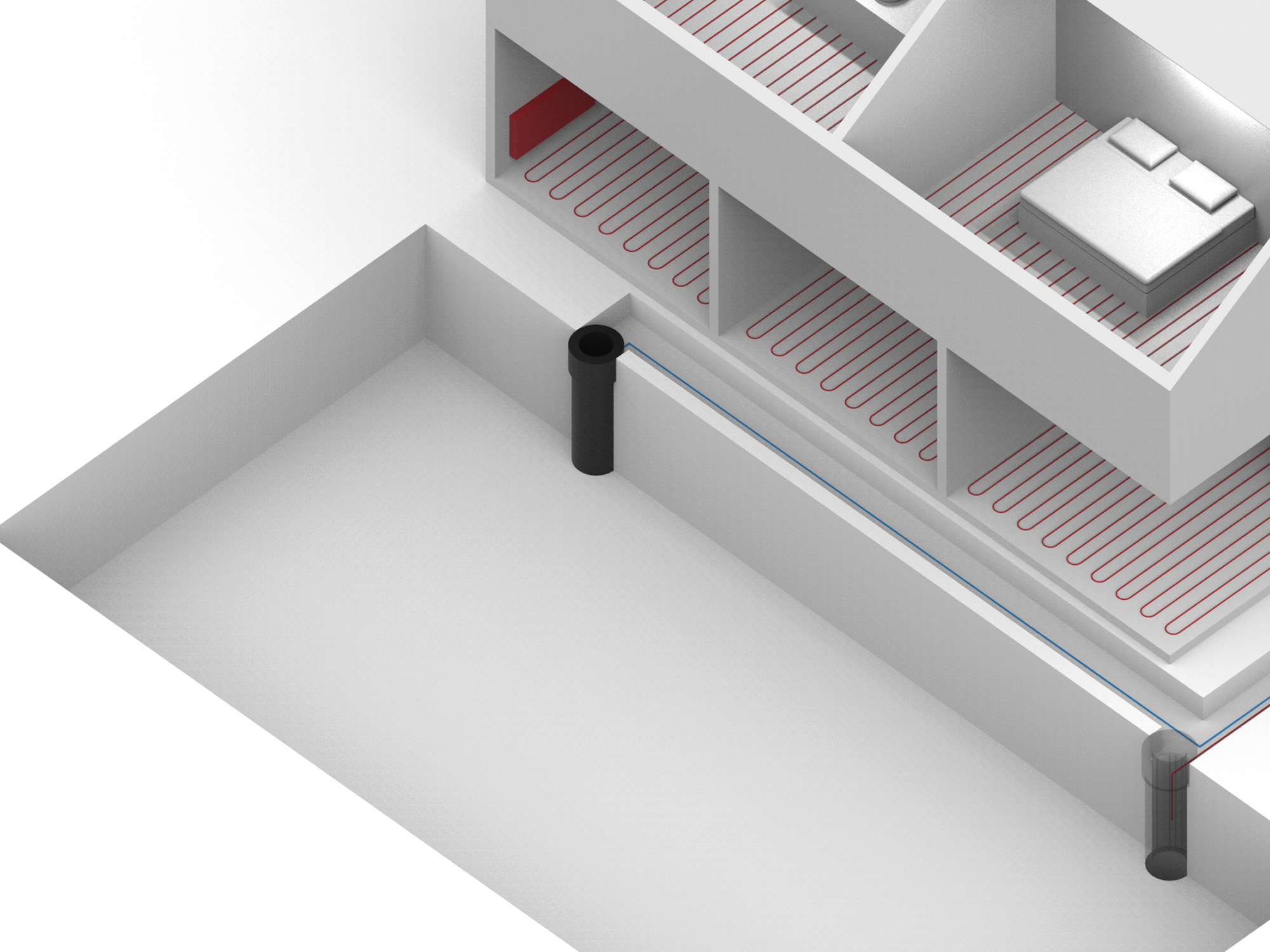

WATER/WATER

‐

Groundwater pumped and returned to the aquifer from boreholes next to the building is a very suitable heat source for the heat pump, due to its constant temperature of between 7 and 12°C. A water permit must be obtained for pumping groundwater and the water must be chemically analysed before work begins.

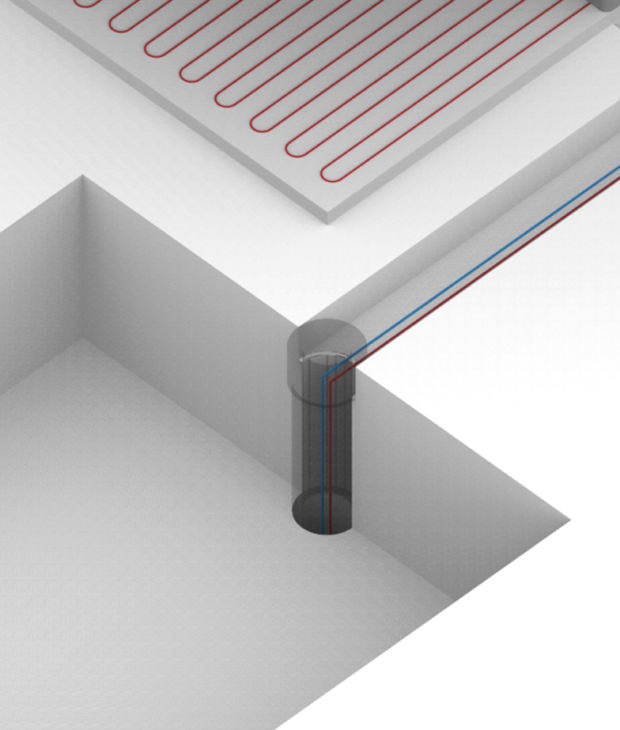

BRINE/WATER (vertical ground collector)

Brine/water heat pumps harness the heat energy stored in rocks or soil. The energy is extracted from the ground through a pipe system that is inserted into deeper boreholes. A vertical ground collector requires a smaller plot of land compared to a ground collector. A vertical ground collector involves drilling deep boreholes into the ground, usually to a depth of between 60 and 200 m, depending on the climatic conditions and the needs of the heating system.

BRINE/WATER (horizontal ground collector)

A horizontal ground collector takes advantage of the naturally stable ground temperature, which is slightly higher than the surface air temperature in winter and lower in summer. It consists of pipes buried horizontally in the ground, which absorb heat in winter and radiate it in summer. The installation of a horizontal ground collector requires a large enough plot of land to allow the pipes to be buried properly and to achieve sufficient system efficiency. For each square metre of heated building area, approximately 1,5 to 2 m² of land is recommended for the installation of the collector.

A heat pump that will serve you for many decades.

Best in Europe

The ETERA heat pump has become the number one seasonal efficiency heat pump in Europe, outperforming its competitors by a staggering 30%. Its seasonal efficiency when using groundwater is an incredible 8.48 (condition: low temperature heating regime in an cold climates. This revolutionary device combines cutting-edge technology, longevity and outstanding efficiency. Read more.

Versatile usability throughout the year

The ETERA heat pump is suitable for those with a new build or undergoing renovations in an older building. It is designed for radiator, floor, or convector heating, and also for cooling purposes. It ensures comfortable living and warmth during winter by heating spaces, provides pleasant cooling in summer, and delivers a consistently sufficient supply of hot water throughout the year.

Non-intrusive and space-saving

Where to place the heat pump in the house? Who would give up already limited space in the utility room? With increasingly rational construction and space layout, efficient space utilization and appearance are crucial. Hence, we’ve responded to the challenges of space utilization and developed a modular heating system with a geothermal heat pump that consolidates the entire utility room into a sleek enclosure, occupying less than 1 m². The ETERA system is designed to cover all household needs within the smallest area possible.

You can control it even from the office

The device allows smart management of the entire system through the mobile or web application, CLOUD.KRONOTERM, from your home, office, or during holidays. Remotely, you can set various heating and cooling schedules or manage hot water, check operational statistics, and optimize consumption. Additionally, the connection enables remote diagnostics. The web connection module is built-in as standard in all heat pumps.

System OptiWeather

Heat pumps come with the OptiWeather system for weather-driven heating, enabling the heat pump to automatically adjust operations based on current external or internal temperatures and harness solar heat, thereby maintaining energy consumption at a minimum level. Consequently, your savings are higher.

8,48

seasonal capacity (SCOP)

Condition: low-temperature heating regime in an cold climates

3–18

kW heating power

depending on ETERA model S, M or L

dB noise level

Noise level at a distance of 1 m

A+++

rate of seasonal energy efficiency

0,5

m2 space occupancy

floor area of the heat pump

different models

by heating power

System ETERA

HEAT PUMP WATER/WATER AND BRINE/WATER

provides plenty of heat
less than 0,5 m2 floor area
smart control of other heat generators such as oil, natural gas or biomass boilers
minimalist design with clean lines
remote control

DOMESTIC HOT WATER MODULE HYDRO B

less than 0,5 m2 floor area
an inaudible and unobtrusive element of the living environment
400 l of usable domestic hot water (at 40 °C)
heat disinfection

HEAT SOURCE

Horizontal ground collector: if there is sufficient surface area (1.5 to 2 times the heating surface), to a depth of 120-170 cm.
Vertical ground collector: a borehole with a depth ranging from 60 to 200 meters. Implementation requires approximately 25 square meters of space and access with a width of at least 2.5 meters for the drilling machine.
The longevity and efficiency of a heat pump depend on the quality of the source.
